Serenata
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1964 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136776
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

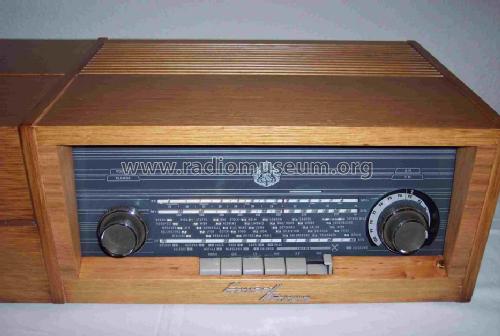

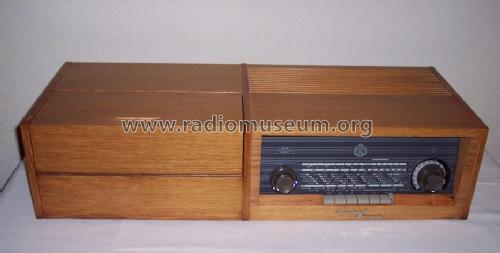

- Model: Serenata - Luxor Radio AB; Motala
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 745 x 185 x 587 mm / 29.3 x 7.3 x 23.1 inch
- Notes
- Luxor Radio Serenata Radiogram - Pick-Up and Magnetophone inputs - Extra Loudspeakers outputs. Record player Type ES-521 Ser. 3 - 16,33,45 and 78 r.p.m. Stereo cartridge with 2 needles - 33 and 45 / 78 rpm
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by J. Virgilio Santos. See "Data change" for further contributors.
