• Country
• Sweden

• Manufacturer / Brand
• Luxor Radio AB; Motala

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139607

• • alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK92 1T4T 1S5T 3V4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 127; 150; 220 / 4,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

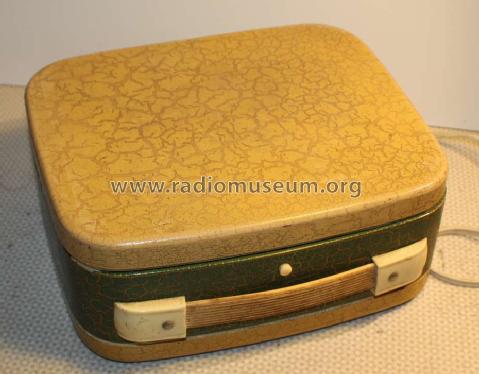

• Model: WB26 - Luxor Radio AB; Motala

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 200 x 90 mm / 9.1 x 7.9 x 3.5 inch

• Notes
• Verschiedene Farbvarianten, Schaltungstechnisch wie WB 21.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karl Josef Hahn. See "Data change" for further contributors.
