• Country
• France

• Manufacturer / Brand
• Mabel Electronique; Paris

• Year
• 1972 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 196815

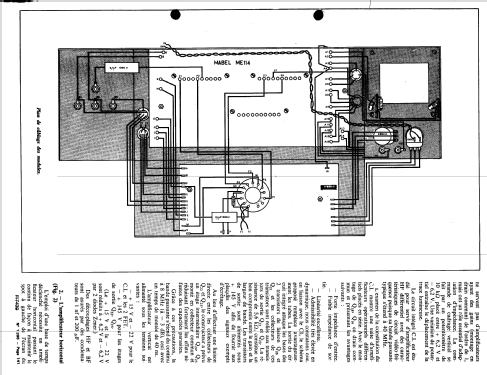

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D7-200DH/T

• Number of Transistors
• 26

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope ME114 - Mabel Electronique; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 195 x 125 mm / 11.4 x 7.7 x 4.9 inch

• Notes
• Amplificateur Vertical: 5 mV/div à 20 V/div en 12 positions,
  Impédance d'entrée 1 MΩ/20pF, Bande passante 8 MHz à -3dB.
  Amplificateur Horizontal: bande passante 1.6 MHz.
  Base de temps: de 1 µs à 5 s en 11 positions.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Price in first year of sale
• 1,658.00 FF

• Literature/Schematics (1)
• Le Haut-Parleur

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
