• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194950

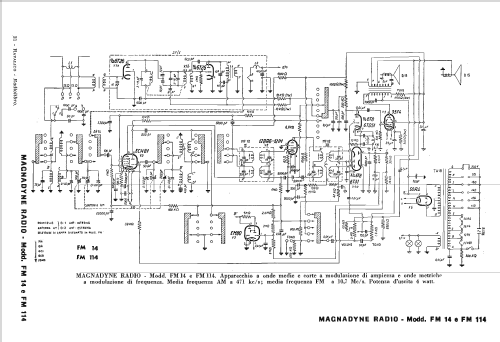

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6T26 ECH81 12BA6 6T8 EM80 35F4 50R4

• Main principle
• Superheterodyne (common); ZF/IF 471/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM14 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Literature/Schematics (2)
• D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
