• Country
• Italy

• Manufacturer / Brand
• Magnafon; Desio (MB)

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130687

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 467/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM219-RF - Magnafon; Desio MB

• Shape
• Tablemodel, low profile (big size).

• Notes

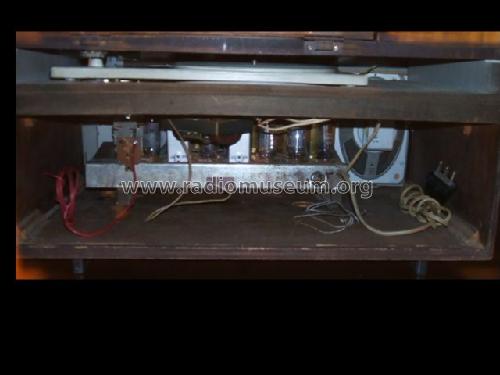

• Mobile in legno di forma squadrata con frontale in plastica. Tasto per voce musica. Permette la ricezione dell'audio TV VHF. Prodotta anche in versione senza giradischi.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Enrico Bonisolo. See "Data change" for further contributors.
