- Country
- France
- Manufacturer / Brand
- Malony-Radio, P.R.; Nice, Marseille, Paris
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 88443
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 77 - Malony-Radio, P.R.; Nice,

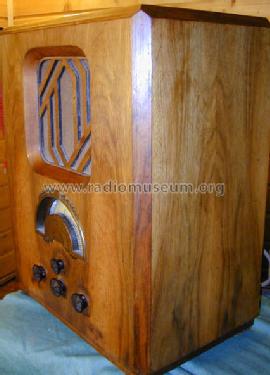

- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 420 x 540 x 300 mm / 16.5 x 21.3 x 11.8 inch
- Notes
- Gegentakt Endstufe mit 2 x 47
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Price in first year of sale
- 1,950.00 ff
- Source of data
- - - Data from my own collection
- Other Models
-
Here you find 37 models, 19 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Malony-Radio, P.R.; Nice, Marseille, Paris
