• Country
• France

• Manufacturer / Brand
• Manufrance, Manufacture Française (MF, M.F.); Saint-Étienne

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73755

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

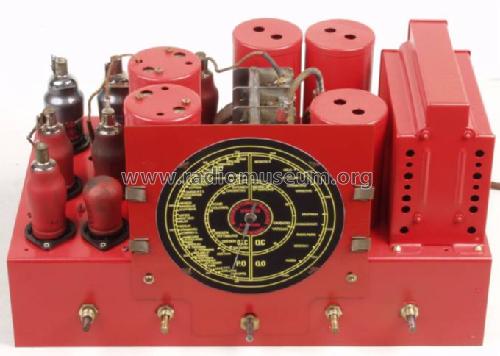

• EF5 EK2 EF5 EB4 EF6 EF6 EL2 EL2 EZ4

• Main principle
• Superhet with RF-stage; ZF/IF 110 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

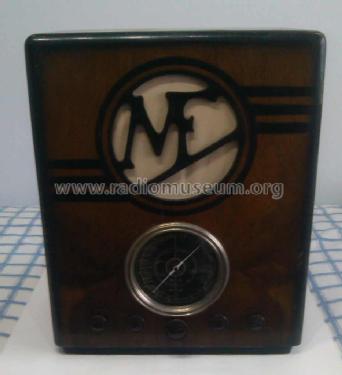

• Model: BA36 [1] - Manufrance, Manufacture

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 510 x 250 mm / 16.1 x 20.1 x 9.8 inch

• Notes
• Ursprungsversion? Bandbreitenumschaltung durch Abschaltung der ZF-Sekundärkreise und weitere Abweichungen von Variante 2. Dial lamps: 4x 6,3V/0,3A

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 885.00 FRF

• External source of data
• Documents-Radio-Service 118, Bd. Voltaire, Paris

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Steffen Thies. See "Data change" for further contributors.
