MF10

• Country
• France

• Manufacturer / Brand
• Manufrance, Manufacture Française (MF, M.F.); Saint-Étienne

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62630

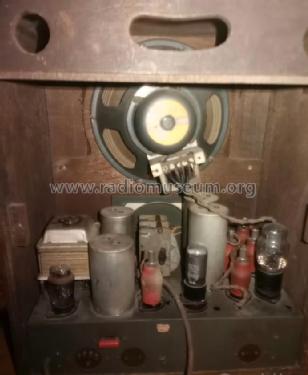

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF6 EH2 EF5 EB4 EF6 EF6 EF6 EL2 EL2 EZ4

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 220, 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: MF10 - Manufrance, Manufacture

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 440 x 500 x 260 mm / 17.3 x 19.7 x 10.2 inch

• Notes
• Has no transformer, therefore a bit dangerous.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR)
