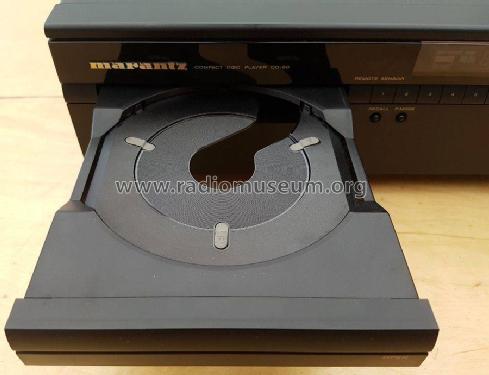

Compact Disc Player CD-50 74CD50 /01B /02B /04B /05B /06B

Marantz (Sound United LLC); Vista, CA

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1990
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 295139

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Gama de ondas
  • - no hay
  • Especialidades
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 110; 127; 220; 240 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Compact Disc Player CD-50 74CD50 /01B /02B /04B /05B /06B - Marantz Sound United LLC;
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 420 x 117 x 188 mm / 16.5 x 4.6 x 7.4 inch
  • Anotaciones

  • A hi-fi stereo compact disc player with infrared remote control. High-impact polystyrene honeycomb chassis, dual TDA1541A/N2 16-bit linear DAC with four-times oversampling digital filter, fully floating CDM-4/19 pivoted swing arm laser, integrated stabilized power supplies, favourite track selection (FTS) programming, 20-track random programming, extended programming and edit modes, 31-key remote control including volume, varable line output (steps of 3dB), Automatic Music Scan (AMS), random (shuffle) play, electronic digital output, Marantz D-Bus In/Out provides system remote control.

    With a jack for headphones, RCA phono sockets for fixed and variable line output, cinch socket for coaxial digital output and D-Bus terminals for system remote control.

    Specification
    Frequency Response 20Hz-20kHz ±0.1dB
    Signal to Noise Ratio ≥ 96 dB
    Channel Separation ≥ 93 dB
    Channel difference ≤ 0.2 dB
    Total Harmonic Distortion ≤ -88 dB
    Intermodulation distortion ≤ -88 dB
    Output Voltage max. 2VRMS/≥10kΩ
    Output impedance 200Ω

    Versions/Power requirements
    /01B / 110, 127, 220V AC 50/60Hz selected by carousel switch
    /02B / 110; 127; 220; 240V AC 50/60Hz selected by changing transformer connections
    /04B / 100V AC 50/60Hz (Japan)
    /05B / 110; 127; 220; 240V AC 50/60Hz selected by changing transformer connections
    /06B / 117V AC 50/60Hz

    Power consumption: 25 watts

    Made in Belgium

  • Peso neto
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mencionado en
  • -- Original prospect or advert (1990 Marantz Not For The Casual Listener catalogue)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service manual Marantz CD-50 /01B /02B /04B /05B)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
