- Country
- France
- Manufacturer / Brand
- Marconi (marque), Cie. Fse. du Gramophone; Paris
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 218477
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org

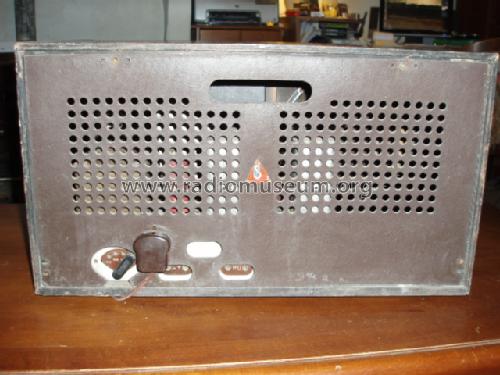

- Model: 16 Ch= 439 - Marconi marque, Cie. Fse. du
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 290 x 195 mm / 18.9 x 11.4 x 7.7 inch
- Notes
-

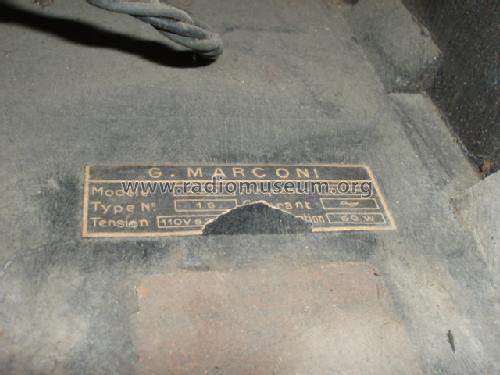

60 W power consumption
Équivalent au Pathé 439.
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Mentioned in
- Le grand livre de la TSF (Doctsf Ref 5339)
- Author
- Model page created by Vincent Baccialone. See "Data change" for further contributors.
