35 Ch= 435L
Marconi (marque), Cie. Fse. du Gramophone; Paris
- Country
- France
- Manufacturer / Brand
- Marconi (marque), Cie. Fse. du Gramophone; Paris
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237036
Publicité Août 1935
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 485 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details

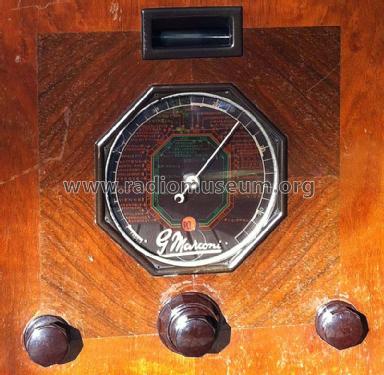

- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 90-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 35 Ch= 435L - Marconi marque, Cie. Fse. du
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 420 x 520 x 290 mm / 16.5 x 20.5 x 11.4 inch
- Notes
-
Indicateur visuel par tube néon, tonalité variable. Inverseur Radio / Pick-Up. Prises de pick-up et antenne-terre. Haut-parleur elliptique 290 x 170 mm à excitation.
- Net weight (2.2 lb = 1 kg)
- 15.7 kg / 34 lb 9.3 oz (34.581 lb)
- Price in first year of sale
- 2,250.00 FRF
- Mentioned in
- -- Original prospect or advert (L'Antenne, 01.09.1935)
- Author
- Model page created by Fabio Zannier. See "Data change" for further contributors.
