M18 Ch= 539
Marconi (marque), Cie. Fse. du Gramophone; Paris
- Country
- France
- Manufacturer / Brand
- Marconi (marque), Cie. Fse. du Gramophone; Paris
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 267129

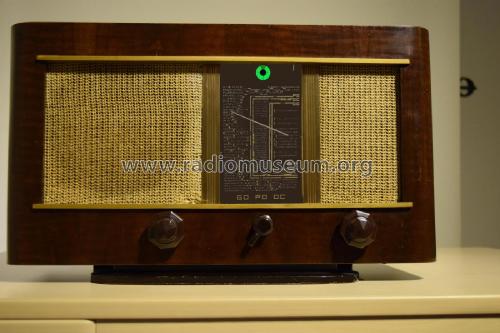

Bild von Hans-Peter Kexel
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Power out
- 4.2 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M18 Ch= 539 - Marconi marque, Cie. Fse. du
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 280 x 220 mm / 18.9 x 11 x 8.7 inch
- Mentioned in
- -- Schematic
- Author
- Model page created by Hans-Peter Kexel. See "Data change" for further contributors.
