• Country
• France

• Manufacturer / Brand
• Marconi (marque), Cie. Fse. du Gramophone; Paris

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224454

• Number of Tubes
• 5

• Valves / Tubes
• 6E8G 6K7 6Q7 25L6G 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

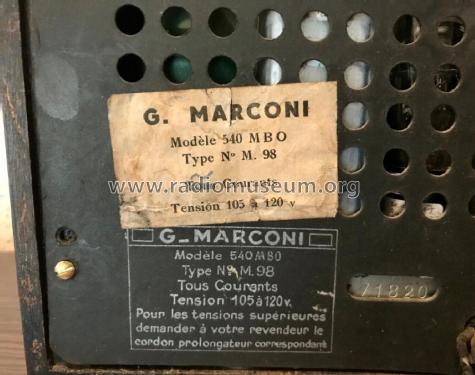

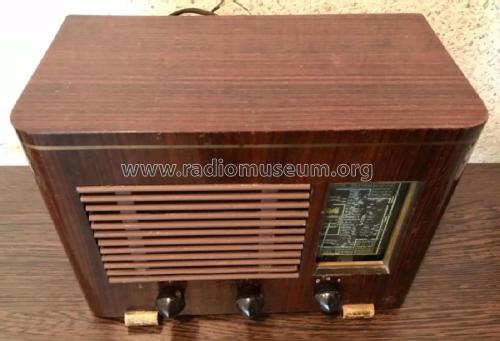

• Model: M98 Ch= 540MBO - Marconi marque, Cie. Fse. du

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 180 x 140 mm / 10.2 x 7.1 x 5.5 inch

• Notes

• Équivalent au Pathé P58.

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 5360)

• Author
• Model page created by Dominique Lebarbier. See "Data change" for further contributors.
