85 Ch= 645A
Marconi (marque), Cie. Fse. du Gramophone; Paris
- Country
- France
- Manufacturer / Brand
- Marconi (marque), Cie. Fse. du Gramophone; Paris
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216256
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 85 Ch= 645A - Marconi marque, Cie. Fse. du
- Shape

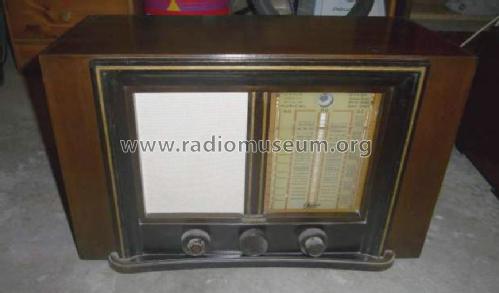

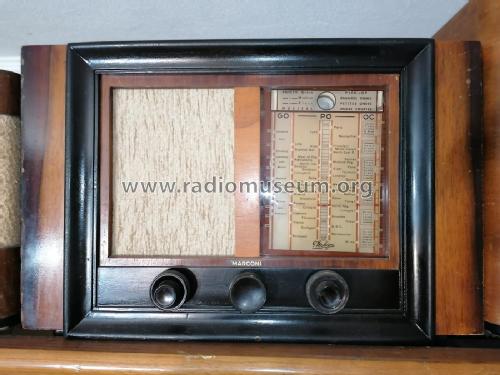

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 350 x 240 mm / 20.9 x 13.8 x 9.4 inch
- Notes
-
3 gammes d'ondes : OC de 15 à 50 m, PO de 190 à 570 m, et GO de 1000 à 2000 m.
Équivalent au Pathé 345.
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 630)
- Author
- Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
