Baby 41 Ch= 451

• Country
• France

• Manufacturer / Brand
• Marconi (marque), Cie. Fse. du Gramophone; Paris

• Year
• 1951–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144370

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Baby 41 Ch= 451 - Marconi marque, Cie. Fse. du

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 210 x 165 x 90 mm / 8.3 x 6.5 x 3.5 inch

• Notes

• 3 gammes d'ondes. Antifading.

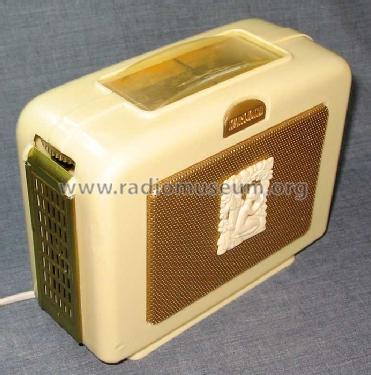

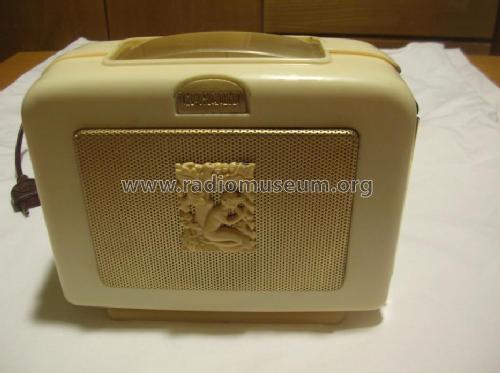

  Coffret blanc et or ou noir et or.

  Équivalent au Pathé Luthin 451.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 17,500.00 FRF

• Mentioned in
• -- Original prospect or advert (Saisons 1952-1954)

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur (1952)

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
