- Country
- France
- Manufacturer / Brand
- Marquett-Radio (Cambridge), Éts. Marcel Auvray; Rouen, Paris
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68532

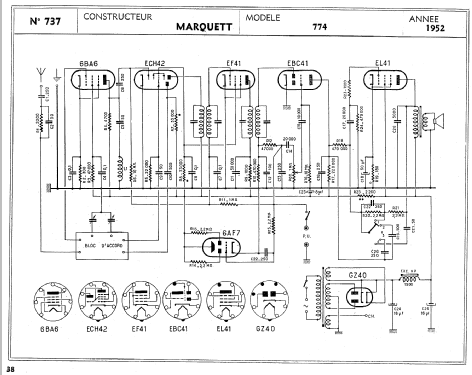

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 774 - Marquett-Radio Cambridge, Éts.
- Shape
- Tablemodel, low profile (big size).
- Notes
-
4 gammes d'ondes. Étage HF accordée. Contre-réaction variable à 4 positions.
Ébénisterie avec colonnes lumineuses.
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Sorokine (SRK) (No. 737)
