Amplificateur 10W
Martin, V.; Paris, Courbevoie
- Country
- France
- Manufacturer / Brand
- Martin, V.; Paris, Courbevoie
- Year
- 1934/1935
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 287440

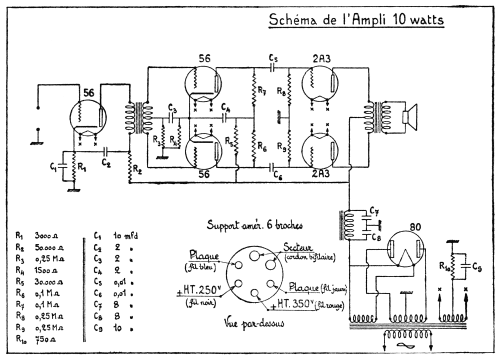

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Amplificateur 10W - Martin, V.; Paris, Courbevoie
- Notes
-
Amplificateur phonographique compris dans ébénisterie abritant d'autre part un tourne-disques à arrêt automatique. Le HP est monté sur baffle indépendant.
- Price in first year of sale
- 2,890.00 FRF
- Mentioned in
- -- Original prospect or advert (L'Antenne No 607, 11.11.1934)
