Magnaphon 12
Mende - Radio H. Mende & Co. GmbH, Dresden
- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1929–1931
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 220729
-
- Brand: System Günther

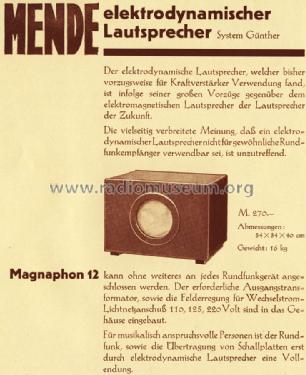

Kahle & Cless, Leipzig, Katalog 1931
Kahle & Cless, Leipzig, Katalog 1931
- Number of Tubes
- 1
- Valves / Tubes
- RGN1503
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Magnaphon 12 - Mende - Radio H. Mende & Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 400 x 340 mm / 21.3 x 15.7 x 13.4 inch
- Notes
-
De erforderliche Ausgangstransformator, sowie die Felderregung für Wechselstrom-Lichtnetzanschluss (110, 125, 220 Volt) sind in das Gehäuse eingebaut.
Die Röhre RGN1503 kostet zusätzlich 14,-- RM.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Price in first year of sale
- 270.00 RM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Kahle & Cless, Leipzig, Katalog 1931
- Author
- Model page created by Alfons Lammers. See "Data change" for further contributors.
