• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1966 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 266912

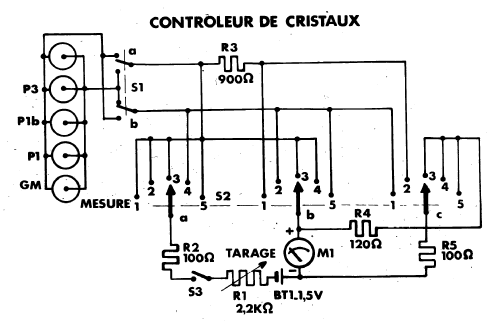

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Contrôleur de cristaux TT801A - Metrix, Compagnie Générale de

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 170 x 95 x 230 mm / 6.7 x 3.7 x 9.1 inch

• Notes

• Appareil de test des cristaux 1N21B à 1N263 & CV2154;

  Ne permet pas le controle des 1N21 et 1N21A.



• Net weight (2.2 lb = 1 kg)
• 2.530 kg / 5 lb 9.2 oz (5.573 lb)

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
