• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 313471

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / RM401: 1.35 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

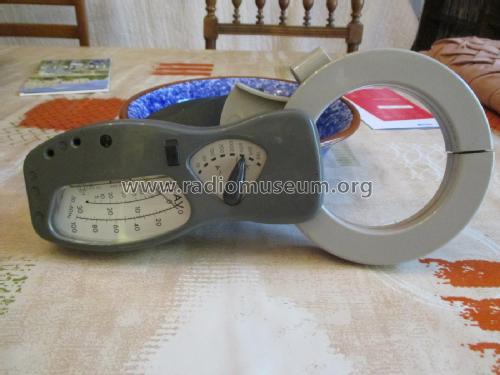

• Model: Electropince Universelle MX402A - Metrix, Compagnie Générale de

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 50 x 140 mm / 11 x 2 x 5.5 inch

• Notes

• Gammes de mesure:

  10; 30; 100; 300; 1000 ACA
  150; 300; 600 ACV
  ~ 5...500 Ω

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Author
• Model page created by Serge Coupet. See "Data change" for further contributors.
