• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 252329

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AU7 ECC189 6X4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 220; 250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

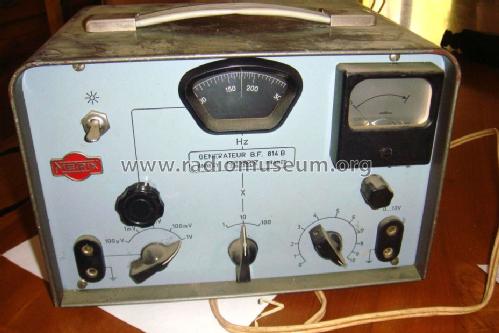

• Model: Generateur B.F. 814B - Metrix, Compagnie Générale de

• Shape
• Tablemodel, with any shape - general.

• Notes

• Metrix Generateur BF, modèle 814B.
  Frequency:
  30-300 Hz, 300-3000 Hz, 3-30 kHz.

• Literature/Schematics (2)

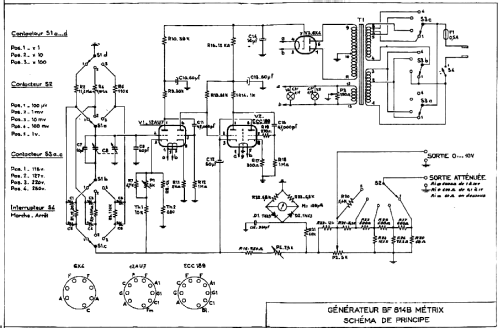

• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
