Transistormètre 302A
Metrix, Compagnie Générale de Métrologie; Annecy
- Country
- France
- Manufacturer / Brand
- Metrix, Compagnie Générale de Métrologie; Annecy
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 206760
Appareil de table

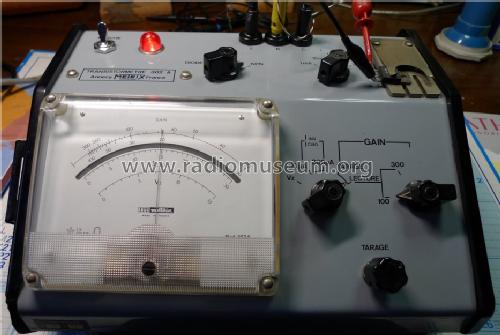

Mesure du gain d'un BUW13A avec Ic=1A
METRIX 302A
METRIX 302A

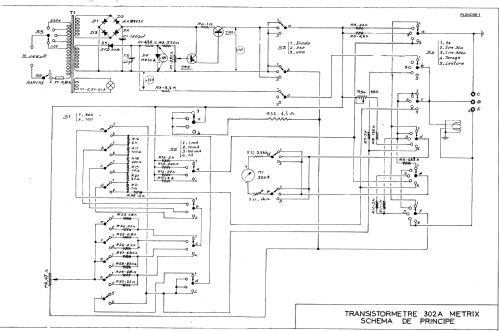

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115; 127; 160; 220; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Transistormètre 302A - Metrix, Compagnie Générale de
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 272 x 116 x 224 mm / 10.7 x 4.6 x 8.8 inch
- Notes
- ITT Mextrix Transistormètre 302A.
Mesure le gain statique h21E ou hFE et le courant inverse ICBO des transistors PNP ou NPN. Aussi mesure les courants inverses des diodes et tension inverse des diodes Zener (0..15 V).
6 diodes (4x 1N1004, SFD108, ZG10).
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Source of data
- -- Original-techn. papers.
