• Country
• France

• Manufacturer / Brand
• Mics Radio, Pierre Michel; Auxerre, Yonne

• Year
• 1972 ??

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 157770

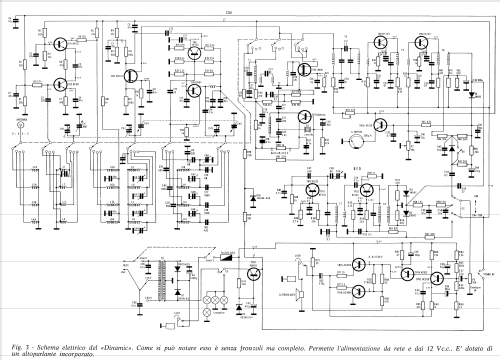

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/1650 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• 110/220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Dynamic - Mics Radio, Pierre Michel;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 220 x 180 mm / 15.6 x 8.7 x 7.1 inch

• Notes
• Frequenzbereiche:
  n.2: 0,5-1,6 MHz
  n.3: 1,6-4,4 MHz
  n.4: 4,3-13 MHz
  n.5: 12,5-31 MHz
  Amateurfrequenzen >br /> A: 3,5-3,8 MHz (80m)
  B: 7,0-7,35 MHz (40m)
  C: 14,0-14,35 MHz (20m)
  D: 21,0-22,0 MHZ (15m)
  E: 28,0-30,0 MHz (10m)
  F: 26,0-27,9 MHz (11m)
  Empfindlichkeit: 1µV für 10dB S/D
  Betriebsarten: AM,CW,SSB

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Literature/Schematics (1)
• Selezione Radio-TV Gennaio 1974

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
