Radio Receiving Equipment RBZ-Special
MILITARY U.S. (different makers for same model)
- País
- Estados Unidos
- Fabricante / Marca
- MILITARY U.S. (different makers for same model)
- Año
- 1943 ?
- Categoría
- Receptor militar
- Radiomuseum.org ID
- 139246
Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Numero de valvulas
- 5
- Principio principal
- Superheterodino con paso previo de RF; ZF/IF 455 kHz
- Gama de ondas
- Bandas de recepción puestas en notas.
- Tensión de funcionamiento
- Pilas / 67.5 & 2 x 1.5 Volt
- Altavoz
- - Este modelo usa amplificador externo de B.F.
- de Radiomuseum.org
- Modelo: Radio Receiving Equipment RBZ-Special - MILITARY U.S. different makers
- Forma
- Formas varias descritas en notas aparte.
- Anotaciones
-

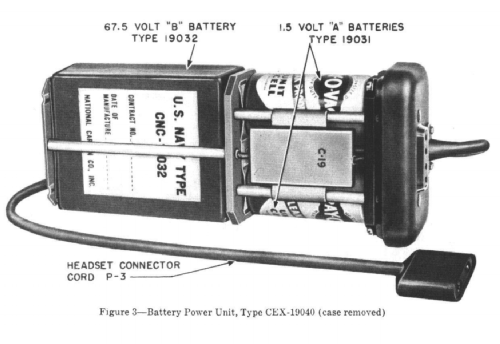

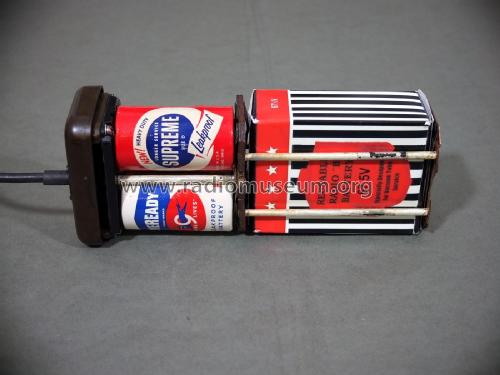

U.S. Navy personal receiver to receive orders in combat zones. RBZ is composed by two small fiber enclosures fitted into a two-pouch canvas holder. One unit contained the radio itself, the second one hosting the dry batteries, connected by a 4-wire cord. The headset was weared with a canvas skullcap under the helmet, which was used as antenna.
The permeability tuned receiver has only switch/volume control and tuning knob. Differs from standard RBZ for 5 - 13 MHz tuning range, mostly used in Europe to cover the BBC broadcast.
The radio could also be AC operated using a special RBZ Power Pack Model 2.
Manufactured by Emerson Radio & Phonograph Corp.
- Procedencia de los datos
- -- Collector info (Sammler)
- Autor
- Modelo creado por Emilio Ciardiello. Ver en "Modificar Ficha" los participantes posteriores.
