- Country
- France
- Manufacturer / Brand
- Minerva Radio; Paris
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155355
Ebay 300311466957
Ebay 300311466957
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 462 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 402 - Minerva Radio; Paris
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 360 x 455 x 240 mm / 14.2 x 17.9 x 9.4 inch
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
- Other Models
-
Here you find 40 models, 30 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Minerva Radio; Paris
Forum contributions about this model: Minerva Radio; Paris: 402
Threads: 1 | Posts: 3
Wer kann mir über dieses Modell Auskunft geben. Es fehlt die Rückwand.
Im Gehäuse ist ein großer Stempel mit folgenden Angaben:
GT05S 483 es könnte auch GTO5S 483 sein.
Attachments

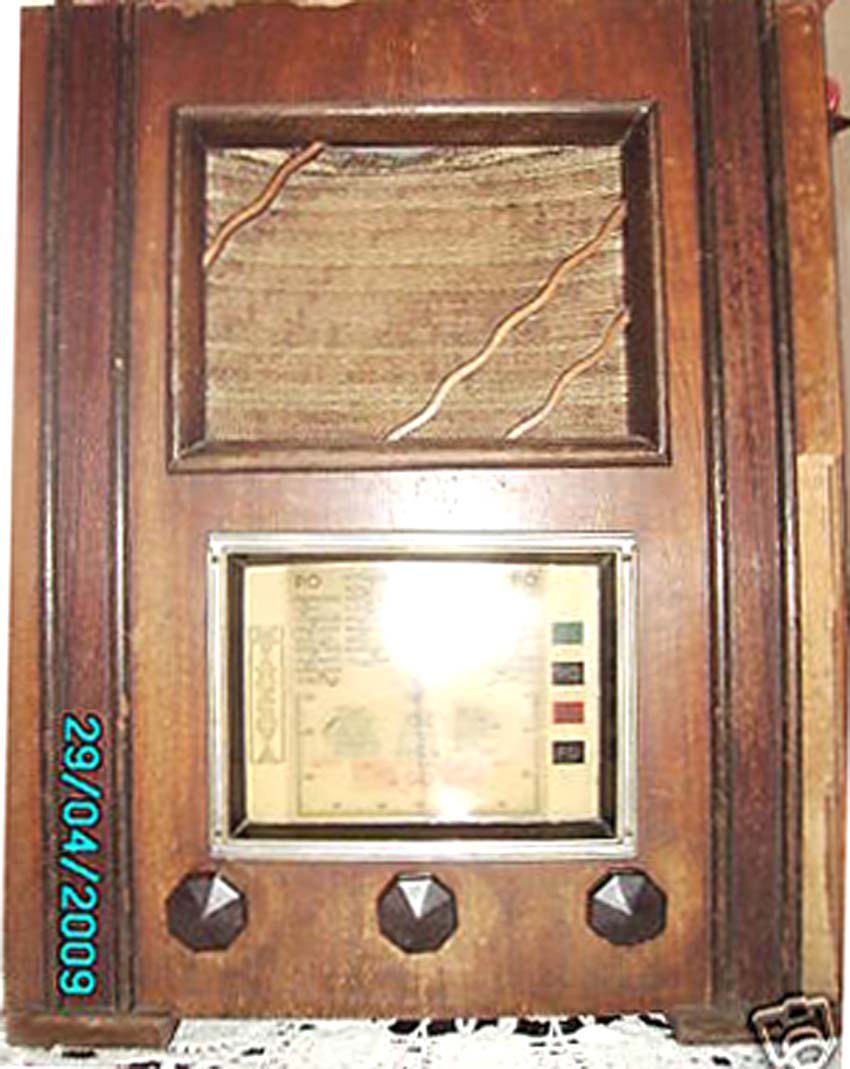

- Minerva_front (91 KB)
- Minerva_innen (73 KB)
Arpad Roth † 27.3.17, 18.May.09
