• Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9817

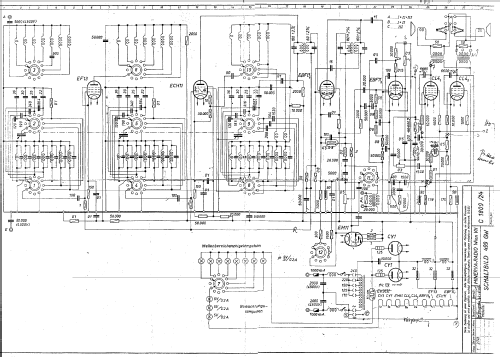

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage
  • Power type and voltage
  • AC/DC-set
  • from Radiomuseum.org
  • Model: 499GW - Minerva-Radio Radiola-
  • Notes
  • Anschluss für ziv.Hellschreiberzusatz(?);
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
