• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9873

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UM4 UY41

• Number of Transistors

• Semiconductors
• NTC-Resistor

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 516U - Minerva-Radio Radiola-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 350 x 220 mm / 19.7 x 13.8 x 8.7 inch

• Notes
• Var.BBr.

• Price in first year of sale
• 1,825.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Picture reference

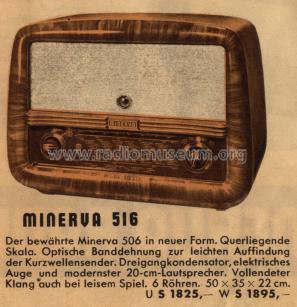

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
