- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9926
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220/240 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

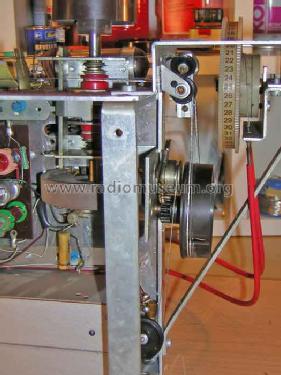

- Model: 589R - Minerva-Radio Radiola-
- Shape
- Chassis only or for «building in»
- Notes
- Radio Einbauchassis für Minerva Fernseh- und Rundfunkschrank Belvedere 589 und 589A
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
