- Country
- France
- Manufacturer / Brand
- Minerva Radio; Paris
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299164
leboncoin.fr/ad/collection/2885906939
eigene Aufnahme Flohmarkt
leboncoin.fr/ad/collection/2885906939
leboncoin.fr/ad/collection/2885906939
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

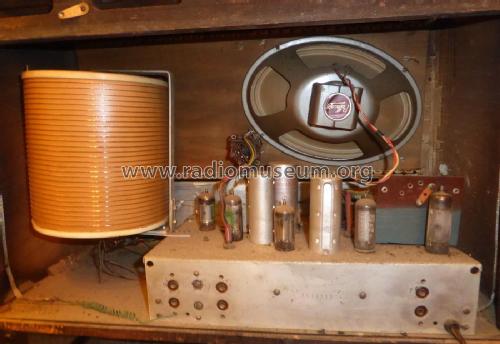

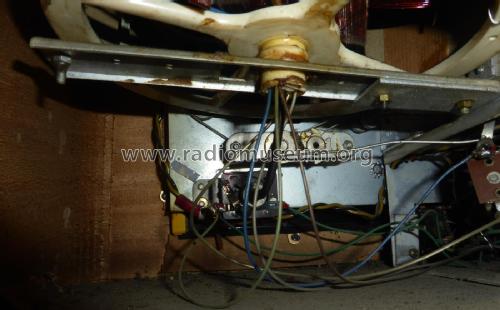

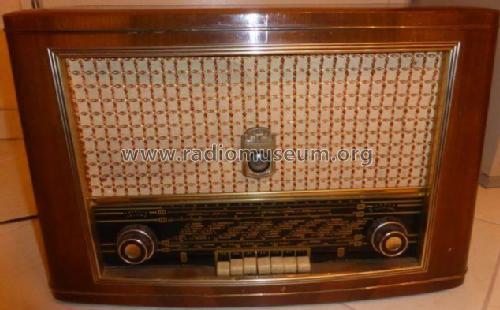

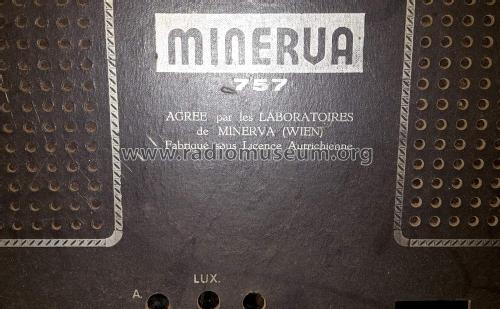

- Model: 757 - Minerva Radio; Paris
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 510 x 350 x 250 mm / 20.1 x 13.8 x 9.8 inch
- Notes
-
Cadre à air incorporé orientable. Clavier 7 touches dont 2 pré-réglées Europe 1 et Luxembourg.
Il est possible que ce modèle a été mise a jour dans le cours de production. Certains appareils comportent l'oeil magique EM81 dans un baffle différent. Reste à determiner.
- Other Models
-
Here you find 40 models, 30 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Minerva Radio; Paris
