• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 84307

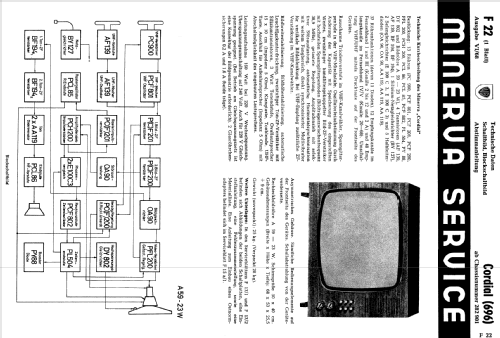

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PC900 PCF801 PCF201 PCF200 PFL200 PCH200 PCL86 PCL85 PCF802 PL504 PY88 DY802 A59-23W

• Number of Transistors
• 4

• Semiconductors
• AF139 AF139 BF194 BF194

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cordial 696 - Minerva-Radio Radiola-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 530 x 345 mm / 26.8 x 20.9 x 13.6 inch

• Notes
• Fernsehband I und III (Kanäle 2-12 und 2A), Band IV/V (Kanäle 20-68). 23-Zoll-Bildröhre.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
