Forte 621L Bis Nr.: 942750

• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1961–1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9946

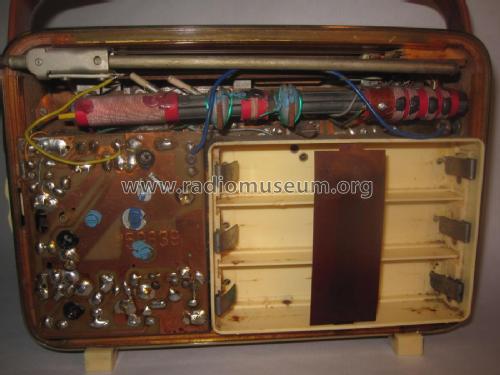

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC126 AC126 AC132 AC127

• Main principle
• Superheterodyne (common); ZF/IF 461/10700 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Forte 621L [Bis Nr.: 942750] - Minerva-Radio Radiola-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 140 x 72 mm / 7.9 x 5.5 x 2.8 inch

• Notes
• Kopfhöreranschluß über 2,5 mm Klinkenbuchse

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
