• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119518

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EK2 EF5 EBC3 EF6 EM1 EL5 EL5 AZ1 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 18 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

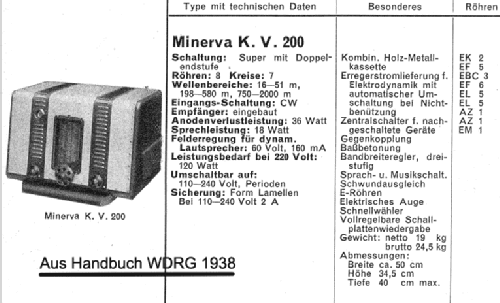

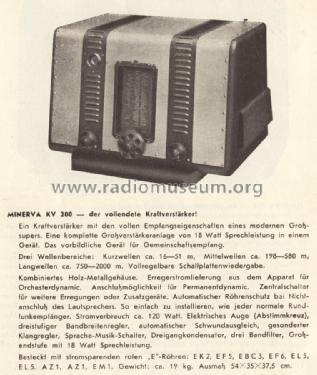

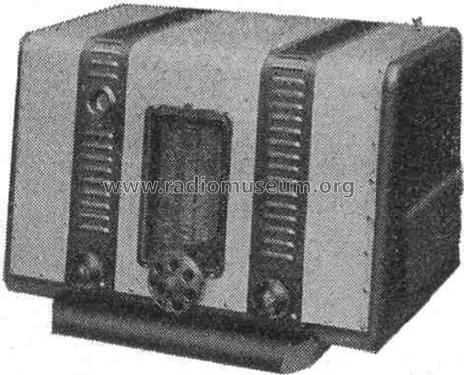

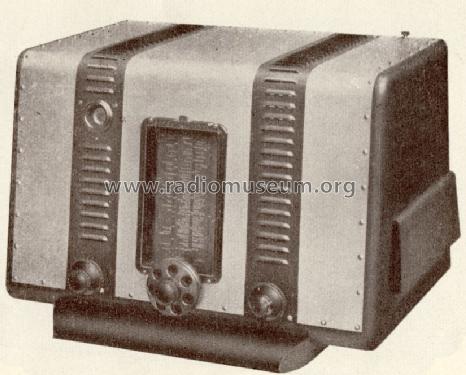

• Model: K.V.200 [AZ1] - Minerva-Radio Radiola-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 345 x 400 mm / 19.7 x 13.6 x 15.7 inch

• Notes
• Es gibt auch eine Ausführung mit 2 x EZ4.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Source of data
• Handbuch WDRG 1938
