Minerdyne 32W

• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9690

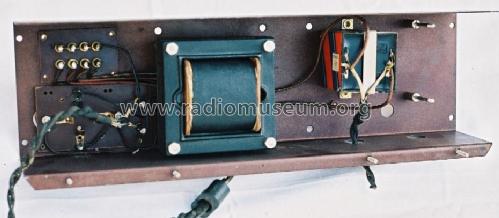

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E442 E442 C443 506

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Minerdyne 32W - Minerva-Radio Radiola-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 560 x 220 mm / 16.1 x 22 x 8.7 inch

• Notes
• Eingebauter Sperrkreis, Gerät auch in Spezialausführung für 25 Hz- Netze erhältlich.
  Zweikreiser mit Zweifachdrehko. Manuelle Gleichlaufkorrektur durch Verstellmöglichkeit eines der beiden Statorpakete von aussen.

• Net weight (2.2 lb = 1 kg)
• 14.6 kg / 32 lb 2.5 oz (32.159 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
