• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76264

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

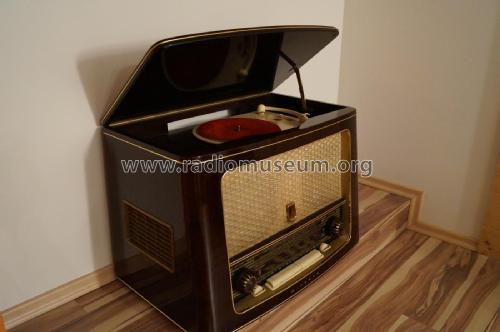

• Model: Minerphon Concord 567 W - Minerva-Radio Radiola-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 590 x 410 x 360 mm / 23.2 x 16.1 x 14.2 inch

• Notes

• Radiochassis: Minerva Concord 567W

  Phono-Laufwerk:

  • Philips Plattenspielerchassis AG2004 mit 3 Geschwindigkeiten oder
  • Dual 295 mit 4 Geschwindigkeiten

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 3,520.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
