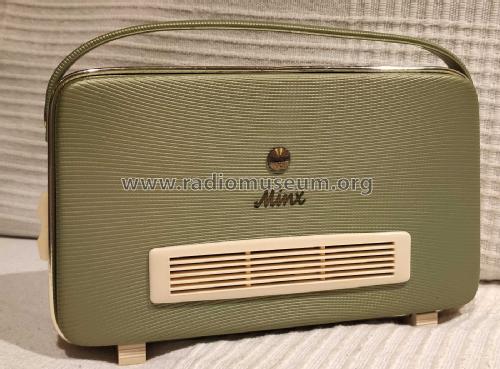

Minx 571/4

• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 266021

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC169 OC169 OC169 OC75 OC74 OC74 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 461 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 × 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Minx 571/4 - Minerva-Radio Radiola-

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

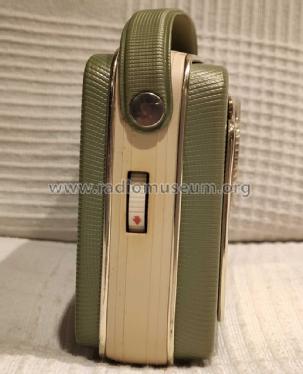

• Minerva Minx 571/4 ist zusätzlich mit Tonblendenschalter an der rechten Seite ausgestattet.
  Siehe auch Minerva Minx 571M ohne Tonblenden-Schalter.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 631 models, 568 with images and 450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
