• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1928/1929

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 9635

• Number of Tubes
• 1

• Valves / Tubes
• G354

• Details
• Power: B-Battery Eliminator

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

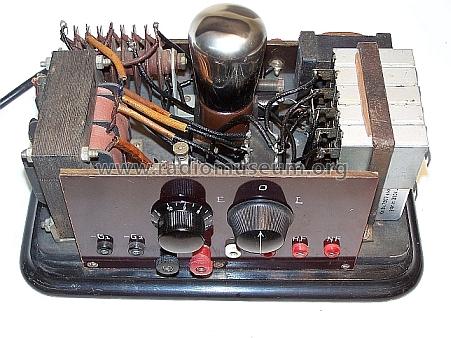

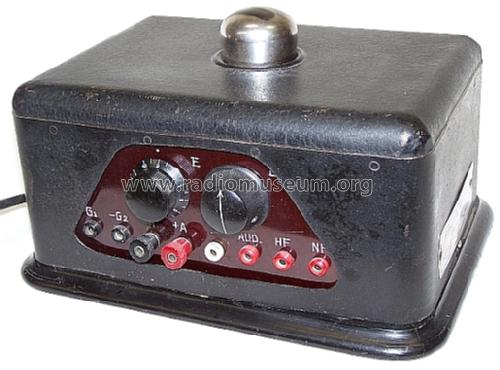

• Model: Netzanschlussgerät [neu] - Minerva-Radio Radiola-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 270 x 170 x 210 mm / 10.6 x 6.7 x 8.3 inch

• Notes
• Mehrere Anoden- und Gitterspannungen, Ladeanschluss für Sammler, auch Heizstromversorgung

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
