• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 85107

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PCC189 PCF86 EF183 EF184 PCL84 ECH84 PCL85 PCF80 PCF80 PCL86 PL500 PY88 DY87 23SP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

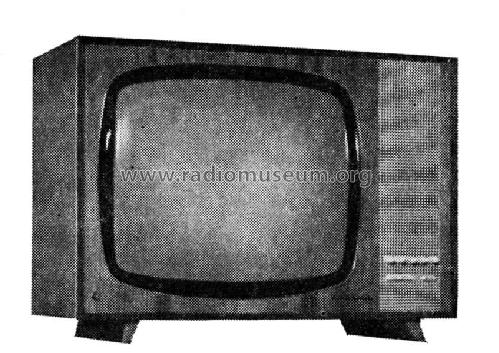

• Model: Record 627 [23"] - Minerva-Radio Radiola-

• Shape
• Tablemodel with Push Buttons.

• Notes
• Empfangsbereich VHF, Band I + III. UHF vorbereitet.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
