- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1972
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 129797
Bedienungsanleitung

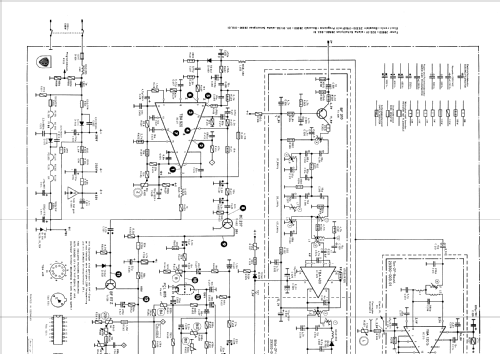

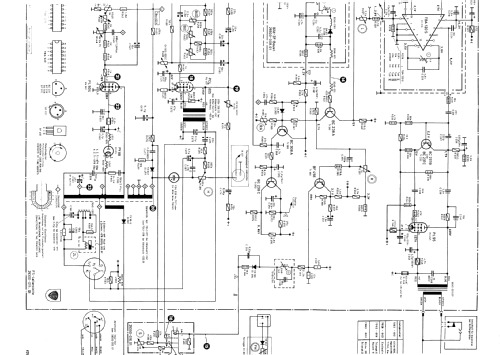

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T 731 UE - Minerva-Radio Radiola-
- Shape
- Tablemodel, low profile (big size).
- Notes
- 61 cm s/w TV mit elektronischem CCIR B/G Standard VHF-/UHF Tuner (21 - 60) mit 7 Sensortasten. 6 ICs, 29 Dioden, 130 W Leistungsaufnahme.
Lieferbares Zubehör: Fernregler II, Tonbandadapter 480, Drehfußgestell 1 oder 4.
Baugleich mit dem Grundig T731 des gleichen Jahrgangs.
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
