- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164274

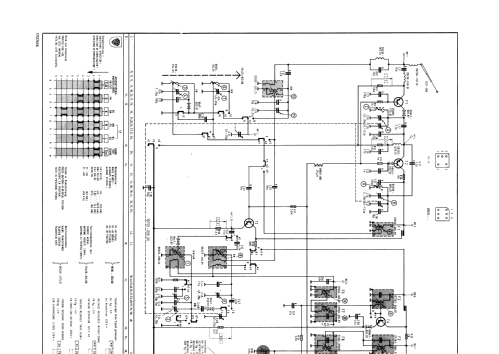

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110 - 220 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TR611a - Minerva-Radio Radiola-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 173 x 70 mm / 11.8 x 6.8 x 2.8 inch
- Notes
-
Das Modell TR611a hat im Gegensatz zum Modell TR611 eine Leiste für die Aufnahme der Reiter (3 × grün / 3 × rot) zur Sendermarkierung.
Siehe auch Parallelgerät Grundig Melody-Boy 600a.Bitte Fotos zum richtigen Modell laden.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
