- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1929/1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 202027
Radiokatalog Karl Hauswirth 1929

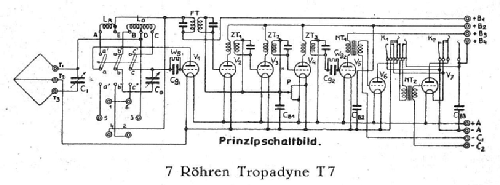

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); 3 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tropadyne T7 - Minerva-Radio Radiola-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 190 x 220 mm / 25.6 x 7.5 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Price in first year of sale
- 872.00 ATS
- Source of data

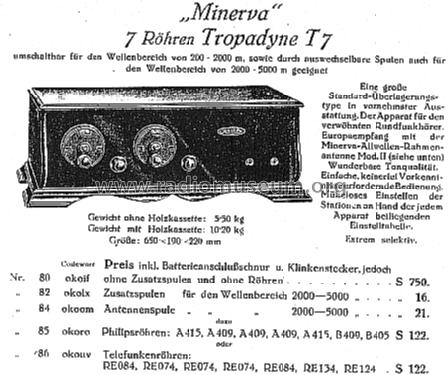

- -- Original prospect or advert
- Literature/Schematics (1)
- - - Manufacturers Literature (Aus Minerva Preisliste 1029)
- Author
- Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
