- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115828
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org

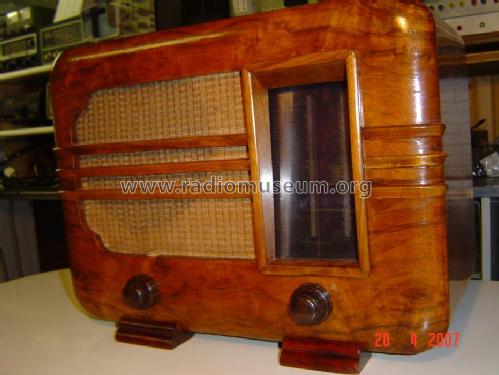

- Model: Z133 - Minerva-Radio Radiola-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 350 x 240 mm / 18.1 x 13.8 x 9.4 inch
- Notes
-
Dieses Modell ist ähnlich zu Zerdik Selectric ZW318, hat aber das Minerva-Logo auf der Skala. Röhrenbestückung und Type Z133 befinden sich auf einem Typenschild/Aufkleber.
- Net weight (2.2 lb = 1 kg)
- 9.6 kg / 21 lb 2.3 oz (21.145 lb)
- Source of data
- - - Data from my own collection
