FM/AM 12-Transistor FX-233A
Mitsubishi Electric Corporation
- Country
- Japan
- Manufacturer / Brand
- Mitsubishi Electric Corporation
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 212539

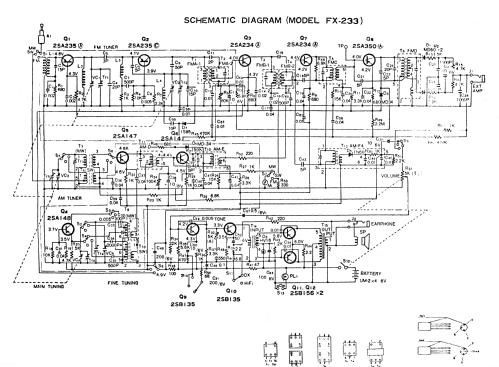

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/AM 12-Transistor FX-233A - Mitsubishi Electric
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 140 x 0 mm / 9.1 x 5.5 x 0 inch
- Notes
- Mitsubishi Three Diamonds FX-233A FM/AM 12-Transistor;
SW: 3.8 - 12 Mhz,
MW: 530 - 1.605 khz,
FM: 87 - 108 MHz.
Tone control, tuning meter, DX-HiFi switch.
