- Country
- France
- Manufacturer / Brand
- Monopole, Bouveau et Cie; Paris, Montreuil-sous-Bois
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283144
Dépliant Monopole
- Number of Tubes
- 9
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Power out
- 5 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Châssis B80 - Monopole, Bouveau et Cie;
- Shape
- Chassis only or for «building in»
- Notes
-
8 lampes américaines et 1 valve. Sortie BF en push-pull. Dispositif présélecteur et quatre condensateurs en ligne.
- Mentioned in

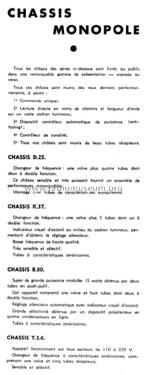

- -- Original prospect or advert (Dépliant 1934)
