• Country
• France

• Manufacturer / Brand
• Monopole, Bouveau et Cie; Paris, Montreuil-sous-Bois

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63115

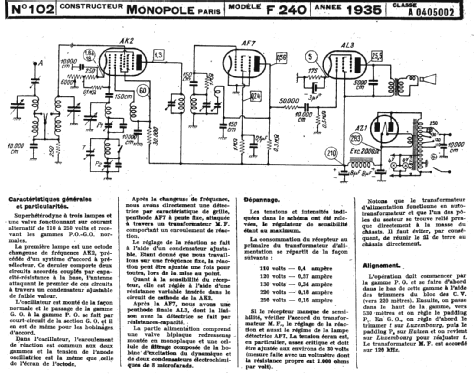

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AK2 AF7 AL3 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 120 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 130; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

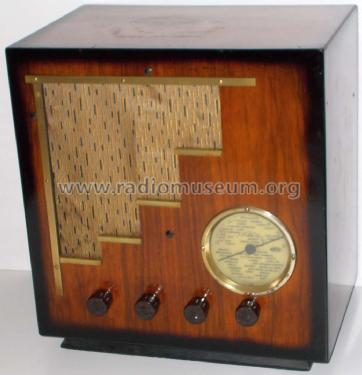

• Model: F240 - Monopole, Bouveau et Cie;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Price in first year of sale
• 995.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original prospect or advert (L'Action Francaise, 31.08.1935)

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 102)
