669WL Ch= Centrum JU5 (44)

Moon Radio AB; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231495

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 480 or 490 kHz; 1 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • AC/DC-set / 115; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

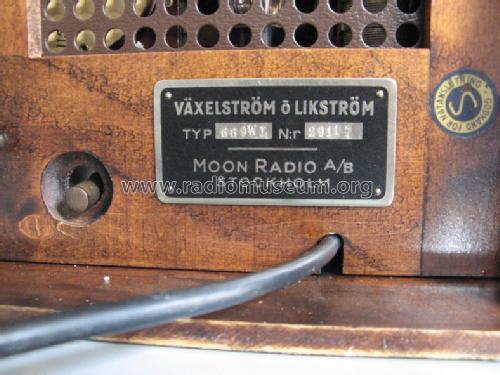

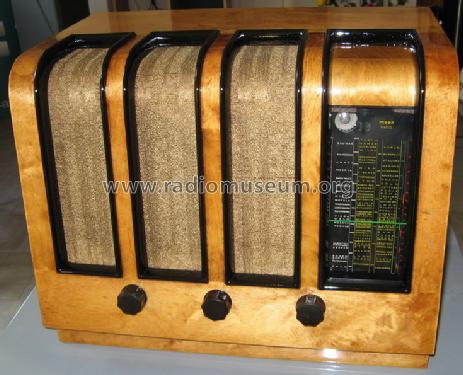

  • Model: 669WL Ch= Centrum JU5 - Moon Radio AB; Stockholm
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 430 x 350 x 290 mm / 16.9 x 13.8 x 11.4 inch
  • Notes

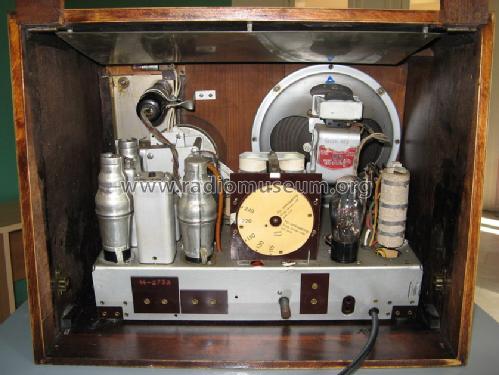

  • The Moon 669WL uses a modified Centrum JU5 (no. 44) chassis, is fitted with a different dial scale and has an additional 6G5/6E5 magic eye.

    See also the AC model Moon 669W.

  • Author
  • Model page created by Mauro Ruzzante. See "Data change" for further contributors.
