• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84376

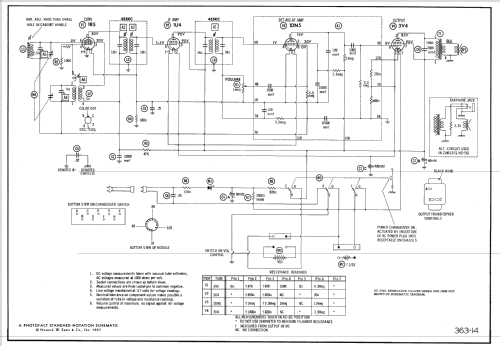

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1DN5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / (7.5; 90); AC/DC 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5P32Y Ch= HS-559 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Color= Yello leatherette. See here about Tinkertoy technique. The Beitman R-18 shows the following models with this chassis HS-559: 5P31A, 5P32C, 5P32E, 5P32R and 5P32Y but also 5P33EW, 5P33VW and 5P33W for chassis HS-561. See also 66L1 and 66L2 with Tinkertoy technique.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 363 Folder 14 Dated 7-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
