Hannover 8T61C
Motorola, Corporación Nacional Electrónica SA; México
- Country
- Mexico
- Manufacturer / Brand
- Motorola, Corporación Nacional Electrónica SA; México
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 320654
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Hannover 8T61C - Motorola, Corporación Nacional
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 310 x 250 mm / 17.7 x 12.2 x 9.8 inch
- Notes
-

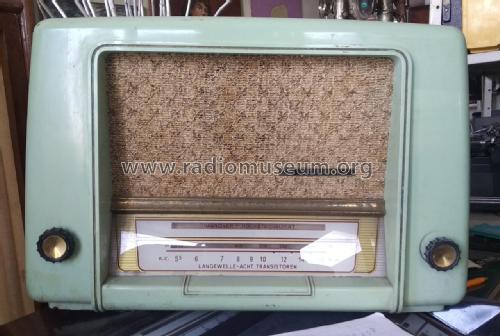

As a peculiarity, the dial of this model is lettered in German. "Hannover - Höchste Qualität" is the model name, followed by "highest quality" , with a space missing.
Interestingly, "Langewelle" (or more correctly, Langwelle) in German means "long wave" (LW), a term used in other countries to denominate MW. A German (or German made) radio from this time would not mix the two up.
Made in Mexico.
- Author
- Model page created by Federico Lucio-Hernández. See "Data change" for further contributors.
