• Country
• United States of America (USA)

• Manufacturer / Brand
• NEC Radio Corporation (Galaxie); Chicago, IL

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100757

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA15 2SA12 2SA12 2SB75 2SB77 2SB77

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

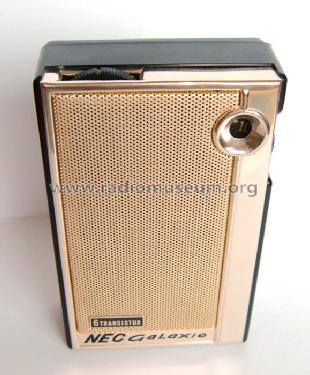

• Model: Galaxie 664 - NEC Radio Corporation Galaxie;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 107 x 33 mm / 2.7 x 4.2 x 1.3 inch

• Notes
• Has American civil defence markings on dial at 640 and 1240 kc. Stamped "Made in Okinawa" on back of case.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Literature/Schematics (1)
• -- Schematic

• Other Models

• Here you find 9 models, 4 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from NEC Radio Corporation (Galaxie); Chicago, IL
