• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116514

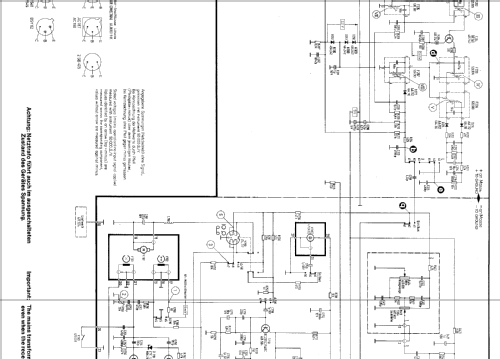

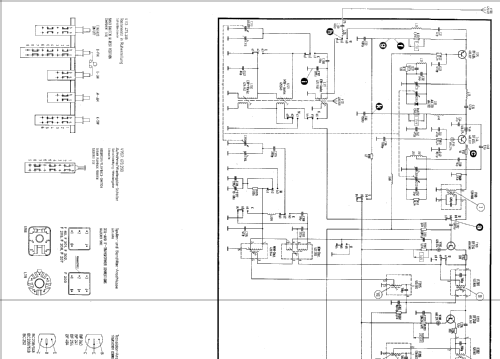

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Citycorder 481 8.112A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 200 x 80 mm / 13 x 7.9 x 3.1 inch

• Notes

• 4 band keys:
  FM 87,5 – 108 MHz;
  SW 5,95 – 6,25 MHz;
  MW 515 – 1650 kHz;
  LW 145 – 260 kHz.
  Frequency range for tape recording: 80 – 10000 Hz.

  Rotary controls for volume and tone, on/off key, frequency switch, DIN socket for phono/TR/microphone; earphone/external loudspeaker socket.
  Automatic level control, automatic switchover batt./mains. Connection socket for microphone with/without remote control, built-in microphone.
  Automatic tape end switching at recording/playback.





• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Price in first year of sale
• 1,990.00 ATS

• Source of data
• Handbuch VDRG 1977/1978

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
