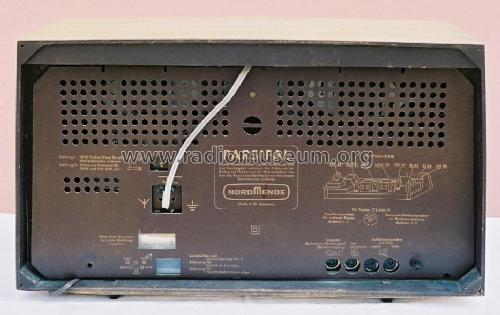

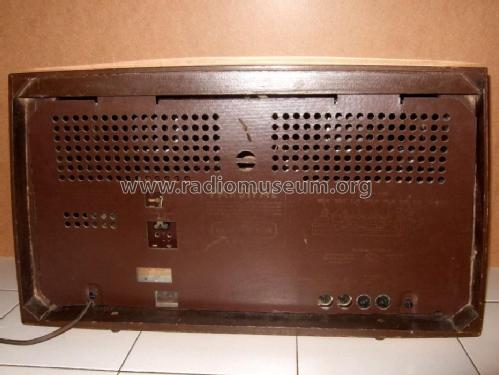

Parsifal D170 Ch= 3/616

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192126

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Parsifal D170 Ch= 3/616 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 350 x 255 mm / 23.6 x 13.8 x 10 inch

• Notes

• Siehe auch das Exportmodell Parsifal C 3/616C für die USA mit MW, 2x KW und UKW/FM 88-108 MHz.

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
